Model#02 3D Print
       
     
 The project aims to take a module from previous chair model to make a lamp shade in Rhino and print in 3D.
       
     
Front_View_01 copy.jpg
       
     
       
     
       
     

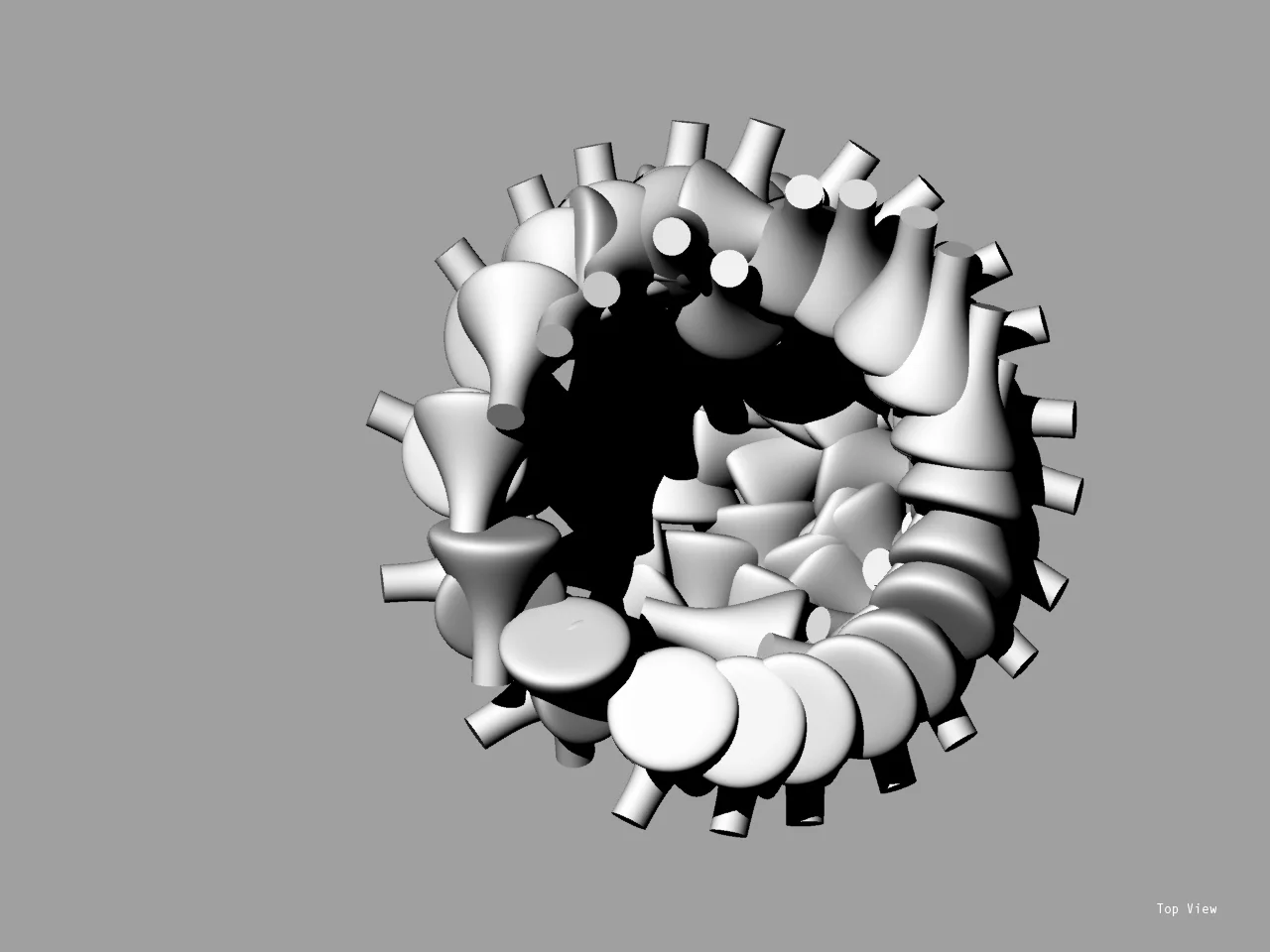

 For the project there are two models. Model #01 is made out of the repeated module of the splat, top rail and stile. Because of the complex structure, Model#01 fails to 3D print, so a second module which has a simpler form, came from the first module, using the same Grasshopper definition to create Model#02.
       
     
       
     
       
     
       
     
       
     
